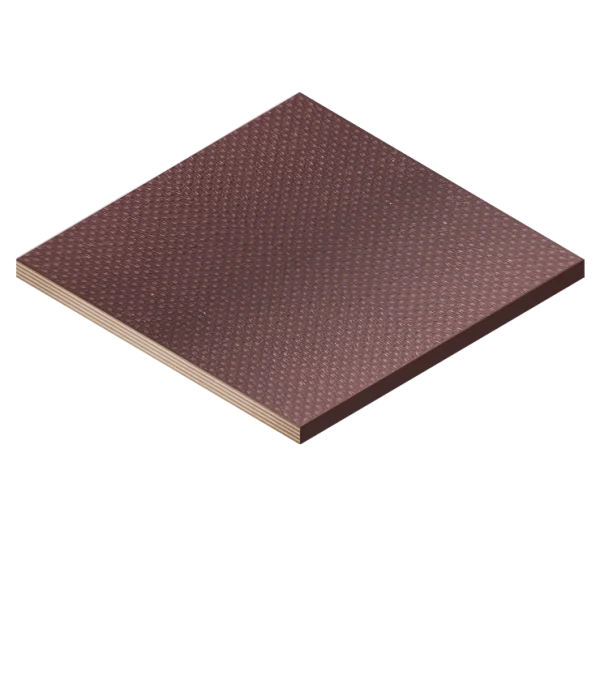

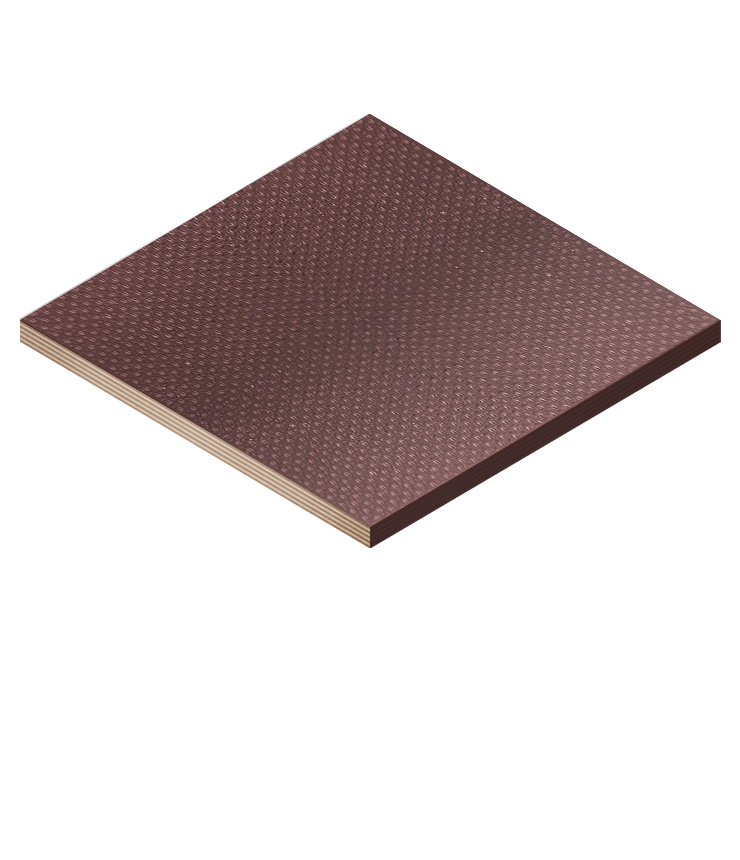

Wiremesh Plywood 2500x1250x12mm

Dimensions : 2500 x 1250 mm
Thickness : 12 mm
Surface : F/W 120-220gr/m²
Wood Type : 100% Birch
Glue : WBP (E 0,5)
Number of Plies : 9
Weight : ∼ 26.3 kg
SKU: wwbp12mm Category: Tag: Brand:

Description

Advantages of 12mm Wiremesh Plywood:
Durability and Strength: The 12mm thick wiremesh plywood exhibits high durability under challenging conditions. It maintains its strength even under extremely heavy loads.
Non-Slip Surface: The textured (wiremesh) phenolic film coating minimizes the risk of slipping, providing a safe surface.
Water Resistance: Ideal for outdoor use, this product has high water resistance. It lasts for a long time in humid environments.
Suitability for Various Applications: It can be used as a floorboard in indoor and outdoor projects, offering high wear resistance.
Easy Workability: The 12mm thickness makes cutting and installation processes easy. It can be comfortably shaped in projects.
Lightness and Portability: Despite its thickness, it is easy to transport and install, saving labor.

Reviews

There are no reviews yet.

Be the first to review “Wiremesh Plywood 2500x1250x12mm”

   Specifications

Thicknesses: 6.5, 8, 9, 10, 12, 15, 18, 21, 24, 27, 30mm
Dimensions: 2440x1220mm or 1220x2440mm- 2500x1250mm or 1250x2500mm 1525x1525mm - 1525х3050mm
Film Density 120/120 g/m², 120/220 g/m², 220/220 g/m²
Surface type: F/W (Smooth/Wire)
Formaldehyde emission (limit value: (3.5 mg/h х m²) 0.1 mg/h x m²
Production of non-standard thicknesses and sizes is possible upon request.

Strength properties

Plywood thickness, mm Bending strength, MPa, average value Modulus of Elasticity, MPa, average value
Perpendicular to grain Parallel to grain Perpendicular to grain Parallel to grain
6.5 60 85 4300 9500
9 65 85 5700 9000
12 60 80 6000 8500
15 60 80 6500 8500
18 75 70 7000 8500
19 70 70 7200 8000
21; 24; 27; 30 70 70 7000 8000

Birch Wiremesh Plywood Weights 2500x1250mm

Thickness, mm 1 Package, M 3 1 Package, M 2 1 Package Weight, Kg 1 Sheet, Kg Quantity per Package 1 Truck, Kg
Net Gross Number of Packages Net Gross
6.5 1.219 187.5 853 885 14.2 60 24 20472 21240
9 1.238 137.5 867 899 19.7 44 24 20808 21576
12 1.238 103.1 867 899 26.3 33 24 20808 21576
15 1.219 81.3 853 885 32.8 26 24 20452 21240
18 1.238 68.8 867 899 39.4 22 24 20808 21576
21 1.247 59.4 873 905 45.9 19 24 20952 21720
24 1.200 50.0 840 872 52.5 16 24 20160 20928
27 1.181 43.8 827 859 59.1 14 24 19848 20616
30 1.219 40.6 853 885 65.6 13 24 20472 21240
