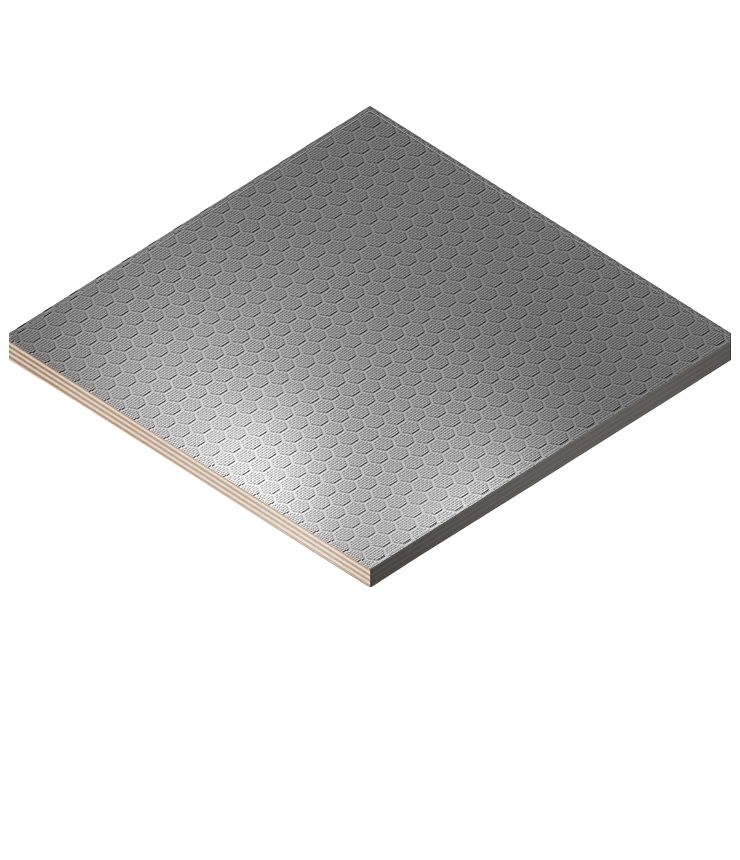

Hexa Plywood 2500x1250x9mm

Dimensions : 2500 x 1250 mm
Thickness : 9 mm
Surface : F/H 120-220gr/m²
Wood Type : 100% Birch
Glue : WBP (E 0,5)
Number of Plies : 7
Weight : ∼ 19.7 kg
SKU: hwbp9mm Category: Tag: Brand:

Description

Advantages of 9mm Hexa Plywood:
High Durability: The 9mm thick hexa plywood exhibits high durability despite its light weight. It can be used safely in various applications.
Non-Slip Hexa Surface: The hexa hexagonal patterned phenolic film coating provides a non-slip surface, offering extra safety for floor panel applications.
Water Resistance: It demonstrates long-lasting durability in humid and water-exposed environments, making it ideal for outdoor use.
Suitability for Various Applications: It can be used in construction and flooring projects in areas requiring a non-slip surface. It is preferred as a floor panel.
Easy Installation and Workability: Thanks to its 9mm thickness, it is easy to cut and install. It can be easily shaped to suit the project.
Lightness and Portability: Its thin structure makes it light and easy to transport, thus saving labor.

Reviews

There are no reviews yet.

Be the first to review “Hexa Plywood 2500x1250x9mm”

   Specifications

Thicknesses: 6.5, 8, 9, 10, 12, 15, 18, 21, 24, 27, 30mm
Dimensions: 2440x1220mm or 1220x2440mm- 2500x1250mm or 1250x2500mm 1525x1525mm - 1525х3050mm
Film Density 120/120 g/m², 120/220 g/m², 220/220 g/m²
Surface type: F/H (Smooth/Hexa)
Formaldehyde emission (limit value: (3.5 mg/h х m²) 0.1 mg/h x m²
Production of non-standard thicknesses and sizes is possible upon request.


Strength properties

Plywood thickness, mm Bending strength, MPa, average value Modulus of Elasticity, MPa, average value
Perpendicular to grain Parallel to grain Perpendicular to grain Parallel to grain
6.5 60 85 4300 9500
9 65 85 5700 9000
12 60 80 6000 8500
15 60 80 6500 8500
18 75 70 7000 8500
19 70 70 7200 8000
21; 24; 27; 30 70 70 7000 8000

Birch Hexa Plywood Weights 2500x1250mm

Thickness, mm 1 Package, M 3 1 Package, M 2 1 Package Weight, Kg 1 Sheet, Kg Quantity per Package 1 Truck, Kg
Net Gross Number of Packages Net Gross
6.5 1.219 187.5 853 885 14.2 60 24 20472 21240
9 1.238 137.5 867 899 19.7 44 24 20808 21576
12 1.238 103.1 867 899 26.3 33 24 20808 21576
15 1.219 81.3 853 885 32.8 26 24 20452 21240
18 1.238 68.8 867 899 39.4 22 24 20808 21576
21 1.247 59.4 873 905 45.9 19 24 20952 21720
24 1.200 50.0 840 872 52.5 16 24 20160 20928
27 1.181 43.8 827 859 59.1 14 24 19848 20616
30 1.219 40.6 853 885 65.6 13 24 20472 21240
