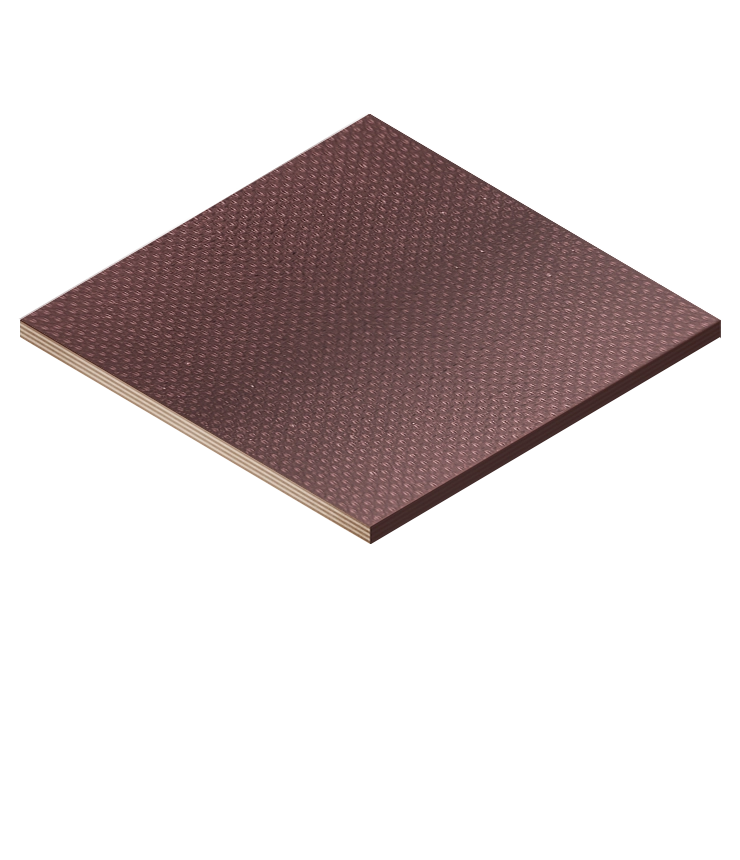

Wiremesh Plywood 2500x1250x9mm

Dimensions : 2500 x 1250 mm
Thickness : 9 mm
Surface : F/W 120-220gr/m²
Wood Type : 100% Birch
Glue : WBP (E 0,5)
Number of Plies : 7
Weight : ∼ 19.7 kg
SKU: wwbp9mm Category: Tag: Brand:

Description

Advantages of 9mm Wiremesh Plywood:
Durability and Strength: The 9mm thick wiremesh plywood demonstrates high strength, providing durability especially under challenging and heavy conditions. Its surface offers extra protection and is resistant to impacts.
Non-Slip Surface: Thanks to its textured (wiremesh) phenolic film coating, it offers a surface that minimizes the risk of slipping. It ensures safe use in flooring, platforms, and construction projects.
Water Resistance: Ideal for outdoor use, this product lasts for a long time in humid environments and maintains its performance thanks to its high water resistance.
Suitability for Various Applications: It can be easily used as a floorboard in both indoor and outdoor projects. Its high wear resistance makes it ideal for heavy-duty applications.
Easy Workability: The 9mm thickness facilitates cutting and installation processes. It can be easily shaped in projects as needed.
Lightness and Portability: Despite being thicker, it is still easy to transport and install, thus saving labor.

Reviews

There are no reviews yet.

Be the first to review “Wiremesh Plywood 2500x1250x9mm”

   Specifications

Thicknesses: 6.5, 8, 9, 10, 12, 15, 18, 21, 24, 27, 30mm
Dimensions: 2440x1220mm or 1220x2440mm- 2500x1250mm or 1250x2500mm 1525x1525mm - 1525х3050mm
Film Density 120/120 g/m², 120/220 g/m², 220/220 g/m²
Surface type: F/W (Smooth/Wire)
Formaldehyde emission (limit value: (3.5 mg/h х m²) 0.1 mg/h x m²
Production of non-standard thicknesses and sizes is possible upon request.

Strength properties

Plywood thickness, mm Bending strength, MPa, average value Modulus of Elasticity, MPa, average value
Perpendicular to grain Parallel to grain Perpendicular to grain Parallel to grain
6.5 60 85 4300 9500
9 65 85 5700 9000
12 60 80 6000 8500
15 60 80 6500 8500
18 75 70 7000 8500
19 70 70 7200 8000
21; 24; 27; 30 70 70 7000 8000

Birch Wiremesh Plywood Weights 2500x1250mm

Thickness, mm 1 Package, M 3 1 Package, M 2 1 Package Weight, Kg 1 Sheet, Kg Quantity per Package 1 Truck, Kg
Net Gross Number of Packages Net Gross
6.5 1.219 187.5 853 885 14.2 60 24 20472 21240
9 1.238 137.5 867 899 19.7 44 24 20808 21576
12 1.238 103.1 867 899 26.3 33 24 20808 21576
15 1.219 81.3 853 885 32.8 26 24 20452 21240
18 1.238 68.8 867 899 39.4 22 24 20808 21576
21 1.247 59.4 873 905 45.9 19 24 20952 21720
24 1.200 50.0 840 872 52.5 16 24 20160 20928
27 1.181 43.8 827 859 59.1 14 24 19848 20616
30 1.219 40.6 853 885 65.6 13 24 20472 21240
