kulkon.com.tr

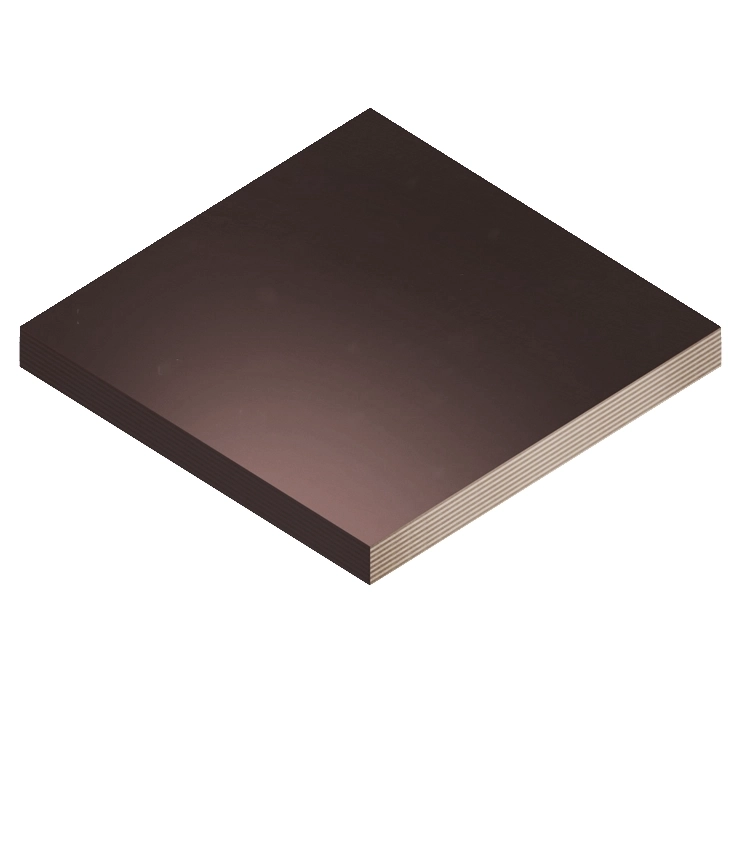

Film Faced Plywood 1500x3000x21mm

Size : 1500 x 3000 mm
Thickness : 21 mm
Surface : Phenolic Film 120/120 gr/m²
Side : Acyrilic Painted(Waterproof)
Wood Type : %100 (Birch)
Glue : WBP (E 1)
Ply : 15
Weight : ∼ 66 kg
SKU: pmwbp21mm Categories: , Tags: , Brand:

Description

Advantages of Maxi Size 21mm Film-Faced Plywood

Large Surface Utilization – Ideal for Large-Scale Projects
Minimizes joints and creates a smooth, flawless surface for high-end applications.

Extra Strength – Designed for Heavy Loads
With a 21mm thickness, this plywood supports heavy loads, making it suitable for industrial structures and formwork systems.

Superior Water & Wear Resistance
The phenolic film coating protects against water and abrasion, ensuring durability in outdoor and high-traffic areas.

Easy Processing & Installation
Can be easily cut, drilled, and assembled using standard tools. Despite its strength, it remains lightweight and easy to handle.

Wide Range of Applications
Ideal for construction, concrete formwork, vehicle flooring, stage systems, shipbuilding, and industrial projects.

For maximum durability and strength, choose Maxi Size 21mm Film-Faced Plywood!

Reviews

There are no reviews yet.

Be the first to review “Film Faced Plywood 1500x3000x21mm”

Specifications

Format, length x width, mm (ft) 1220×2440×1220 (4×8×4) 1250×2500×1250 (4×8×4) 1500/1525×2440/2500 (5×8) 2440/2500×1500/1525 (8×5) 1500/1525×3000/3050 (5×10)
Thickness, mm 18–21
Surface type Phenolic Film (F/F)
Film density, g/m² 120, 220
Formaldehyde emission class E1
Water resistance WBP (Waterproof)
Density, kg/m³ 640–700
Moisture, % 5–14
Edge sealing Waterproof acrylic paint
UNECE N118 UNECE Certificate N118

Manufactured in accordance with the STO 52654419-006-2018 “Laminated birch plywood” standard.

Strength Values

Thickness, mm Value
Ultimate strength in static bending, MPa Along the grain of outer layers 9–40 60
Tensile strength along the grain 30
Tensile strength along the grain, MPa 6–8 30
Modulus of elasticity in static bending, MPa Parallel to the grain 9–40 6000
Perpendicular to the grain 3000

Film Faced Plywood Weights 1500x3000mm (Birch)

Thickness, mm 1 Package, m3 1 Package, m2 1 Package Weight, kg 1 Sheet, kg Sheets per Package 1 Truck Load, kg
Net Gross No. of Packages Net Gross
18 1.782 99 1243 1280 56.5 22 16 19888 20480
21 1.796 85.5 1253 1290 66 19 16 20048 20640
