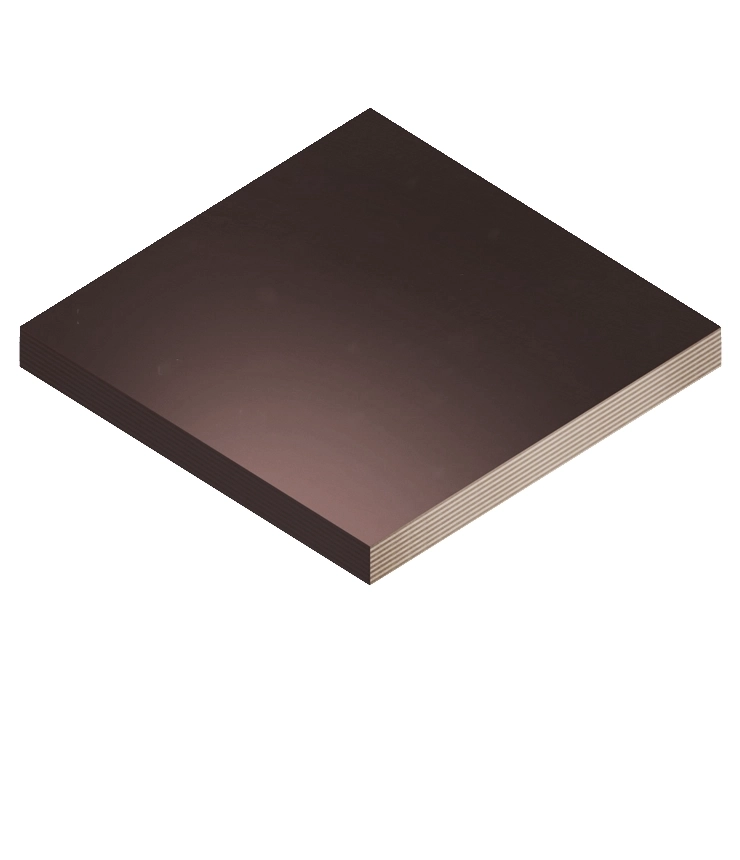

Film Faced Plywood 1500x3000x18mm

Size : 1500 x 3000 mm
Thickness : 18 mm
Surface : Phenolic Film 120/120 gr/m²
Side : Acyrilic Painted (Waterproof)
Wood Type    : %100 Birch
Glue : WBP (E 1)
Ply : 13
Weight : ∼ 56,5 kg
SKU: pmwbp18mm Categories: , Tags: , Brand:

Description

Advantages of Maxi Size 18mm Film-Faced Plywood

Large Surface Coverage – Fewer Joints, Smoother Finish
Maxi size plywood minimizes the number of joints, providing a flawless and aesthetic surface for large-scale projects.

Superior Water & Moisture Resistance
The phenolic film coating enhances its resistance to water and humidity, making it perfect for concrete formwork and outdoor applications.

High Strength – Designed for Heavy Loads
With its 18mm thickness and birch core structure, this plywood withstands heavy pressure, making it ideal for construction and industrial use.

Lightweight & Easy to Work With
Easily cut, drilled, and assembled with standard tools. Its lightweight structure ensures easy handling and installation.

Versatile Applications
Perfect for construction, formwork systems, stage platforms, vehicle interiors, and furniture production.

Choose Maxi Size 18mm Film-Faced Plywood for durability and efficiency in your projects!

Reviews

There are no reviews yet.

Be the first to review “Film Faced Plywood 1500x3000x18mm”

Specifications

Format, length x width, mm (ft) 1220×2440×1220 (4×8×4) 1250×2500×1250 (4×8×4) 1500/1525×2440/2500 (5×8) 2440/2500×1500/1525 (8×5) 1500/1525×3000/3050 (5×10)
Thickness, mm 18–21
Surface type Phenolic Film (F/F)
Film density, g/m² 120, 220
Formaldehyde emission class E1
Water resistance WBP (Waterproof)
Density, kg/m³ 640–700
Moisture, % 5–14
Edge sealing Waterproof acrylic paint
UNECE N118 UNECE Certificate N118

Manufactured in accordance with the STO 52654419-006-2018 “Laminated birch plywood” standard.

Strength Values

Thickness, mm Value
Ultimate strength in static bending, MPa Along the grain of outer layers 9–40 60
Tensile strength along the grain 30
Tensile strength along the grain, MPa 6–8 30
Modulus of elasticity in static bending, MPa Parallel to the grain 9–40 6000
Perpendicular to the grain 3000

Film Faced Plywood Weights 1500x3000mm (Birch)

Thickness, mm 1 Package, m3 1 Package, m2 1 Package Weight, kg 1 Sheet, kg Sheets per Package 1 Truck Load, kg
Net Gross No. of Packages Net Gross
18 1.782 99 1243 1280 56.5 22 16 19888 20480
21 1.796 85.5 1253 1290 66 19 16 20048 20640
